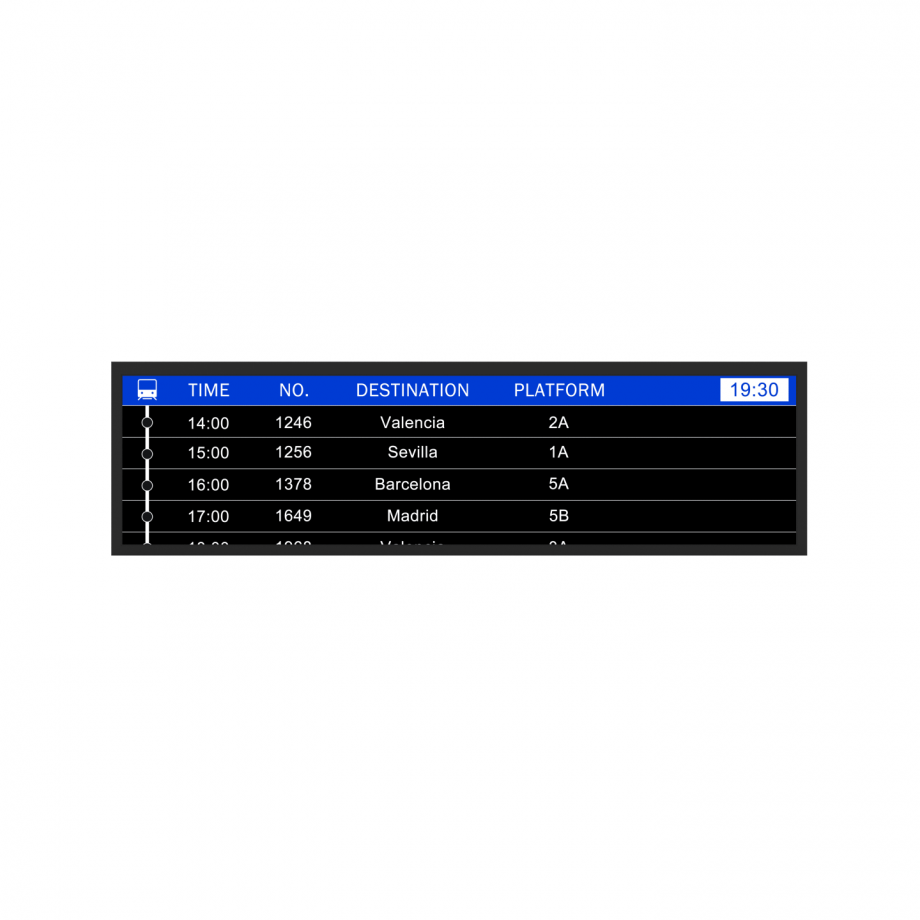

RS495IVN-GD40 49.5 inch Ultra Wide Stretched Bar LCD Panel
Factory Direct / Volume Pricing
Custom Configurations Available (Nits, IP Rating, Board)
49.5 inch ultra-wide stretched bar LCD panel, 1920×540 VA, 4000 nits (Typ.), industrial -20~70°C. Bare LCM module for transit and passenger information display signage.
Screen Size
49.5"
Resolution
1920×540
Brightness
4000 nits
Contrast Ratio
4000:1
CE Certified
RoHS Certified
FCC Certified
3-Year Warranty
Technical Specifications & Hardware Parameters
Full Specifications
| Model Name | RS495IVN-GD40 |
|---|---|
| Panel Size | 49.5" |
| Brightness | 4000 (Typ.) |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1920×540 |
| Contrast Ratio | 4000:1 (Typ.) |
| LC Family | VA |
| Polarizer | Transmissive |
| Colors Amount | 16.7M |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | Symmetry |
| Aspect Ratio | >3:1 |
| Form Factor | Flat Rectangle |
| Orientation | Landscape type |
| Composition | LCM |
| Cut Ratio | 1/2 cut |
| Backlight Type | WLED |
| Interface Type | LVDS |
| Interface Pins | 30 |
| Touch Type | Without |
| Active Area | 1209.6 × 340.2 |
| Outline | 1242.2 × 377.8 |
| Max. Depth | 61.3 |
| Operating Temp. | -20~70 |
| Storage Temp. | -30~80 |
| Product Class | Graphic Display |
| Minimum Order | 2 pcs |
| Sample Offer | Paid Sample |
