Customizable

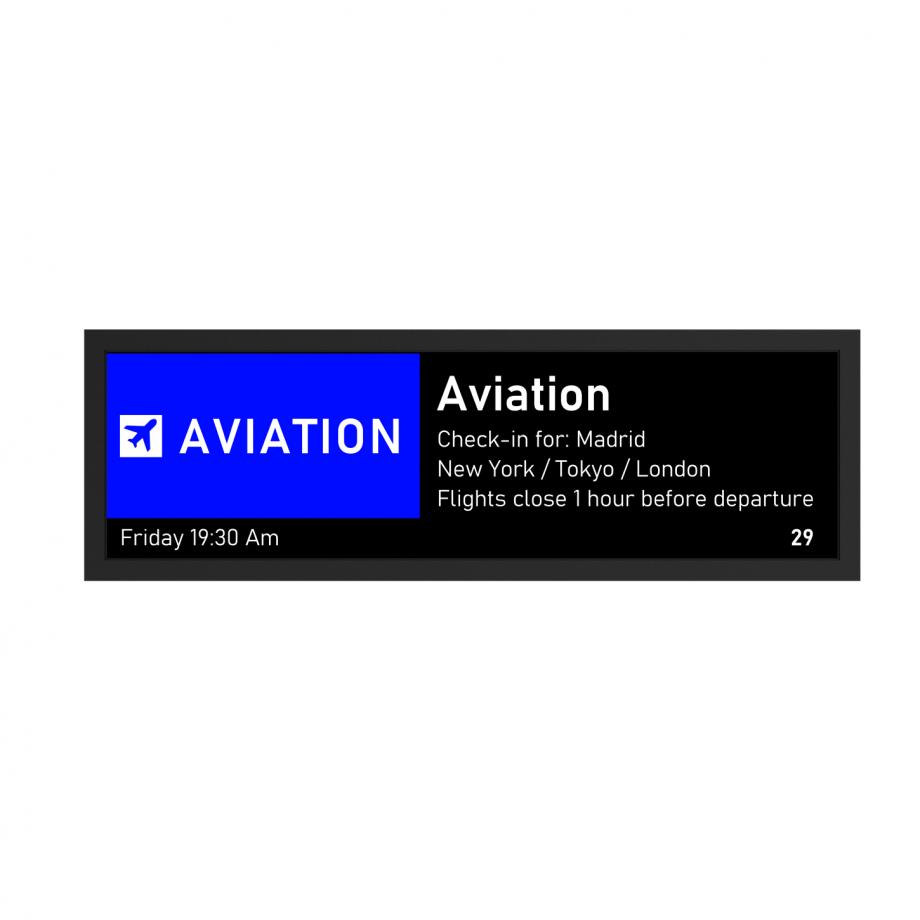

RS376ENT-ND10 37.6 inch Ultra Wide Stretched Bar LCD Panel
Factory Direct / Volume Pricing
Custom Configurations Available (Nits, IP Rating, Board)
37.6 inch ultra-wide stretched bar LCD panel, 1920×540 IPS, 1000 nits (Typ.), industrial -20~70°C. Bare LCM module for transit and passenger information display signage.
Screen Size
37.6"
Resolution
1920×540
Brightness
1000 nits
Contrast Ratio
1200:1
CE Certified
RoHS Certified
FCC Certified
3-Year Warranty
Technical Specifications & Hardware Parameters
Full Specifications
| Model Name | RS376ENT-ND10 |
|---|---|
| Panel Size | 37.6" |
| Brightness | 1000 (Typ.) |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1920×540 |
| Contrast Ratio | 1200:1 (Typ.) |
| LC Family | IPS |
| Polarizer | Transmissive |
| Colors Amount | 16.7M |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | Symmetry |
| Aspect Ratio | >3:1 |
| Form Factor | Flat Rectangle |
| Orientation | Landscape type |
| Composition | LCM |
| Backlight Type | WLED |
| Interface Type | LVDS |
| Interface Pins | 20 |
| Touch Type | Without |
| Active Area | 919.3 × 258.6 |
| Outline | 951.9 × 280.4 |
| Max. Depth | 46.3 |
| Operating Temp. | -20~70 |
| Storage Temp. | -30~80 |
| Product Class | Graphic Display |
| Minimum Order | 2 pcs |
| Sample Offer | Paid Sample |
Interested in the RS376ENT-ND10 37.6 inch Ultra Wide Stretched Bar LCD Panel?
Get pricing, lead time, and customization options. Our engineers respond within 8 hours.
