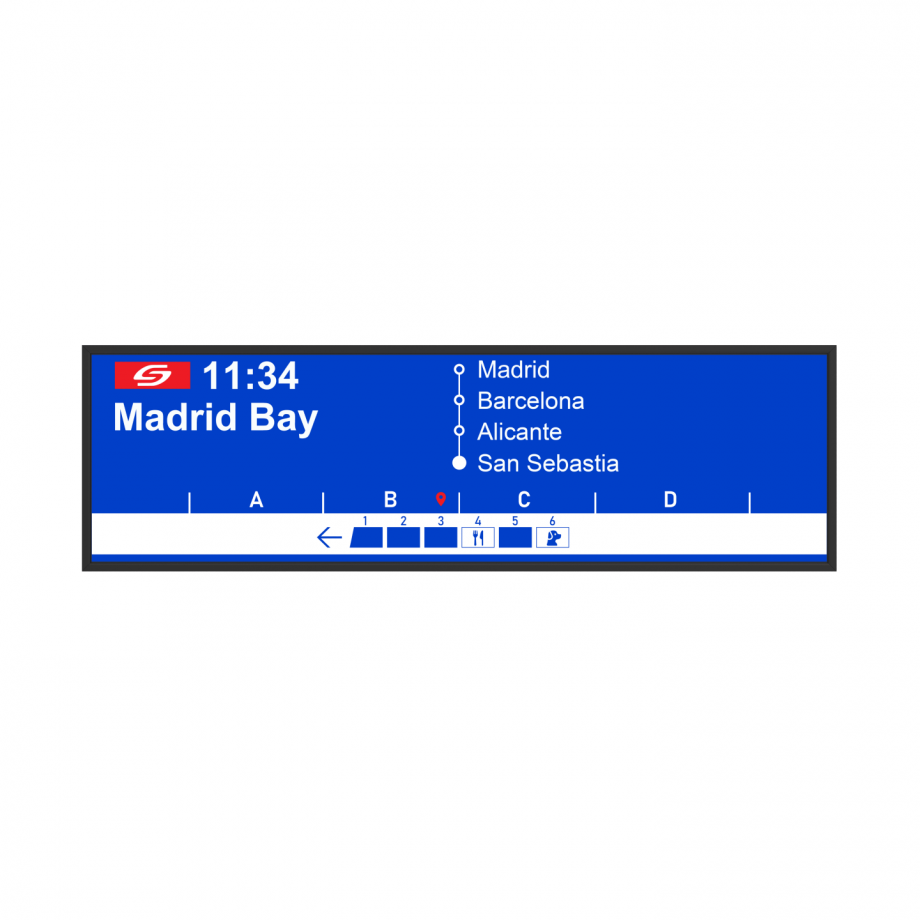

RS191ENT-NE15 19.1 inch Ultra Wide Stretched Bar LCD Panel
Factory Direct / Volume Pricing
Custom Configurations Available (Nits, IP Rating, Board)
19.1 inch ultra-wide stretched bar LCD panel, 1920×360 IPS, 1500 nits (Typ.), industrial -20~70°C. Bare LCM module for transit and passenger information display signage.
Screen Size
19.1"
Resolution
1920×360
Brightness
1500 nits
Contrast Ratio
1000:1
CE Certified
RoHS Certified
FCC Certified
3-Year Warranty
Technical Specifications & Hardware Parameters
Full Specifications
| Model Name | RS191ENT-NE15 |
|---|---|
| Panel Size | 19.1" |
| Brightness | 1500 (Typ.) |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1920×360 |
| Contrast Ratio | 1000:1 (Typ.) |
| LC Family | IPS |
| Polarizer | Transmissive |
| Colors Amount | 16.7M |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | Symmetry |
| Aspect Ratio | >3:1 |
| Form Factor | Flat Rectangle |
| Orientation | Landscape type |
| Composition | LCM |
| Cut Ratio | 1/3 cut |
| Backlight Type | WLED |
| Interface Type | LVDS |
| Interface Pins | 30 |
| Touch Type | Without |
| Active Area | 476.64 × 89.37 |
| Outline | 510 × 123 |
| Max. Depth | 17.5 |
| Operating Temp. | -20~70 |
| Storage Temp. | -30~80 |
| Product Class | Graphic Display |
| Minimum Order | 2 pcs |
| Sample Offer | Paid Sample |
