Customizable

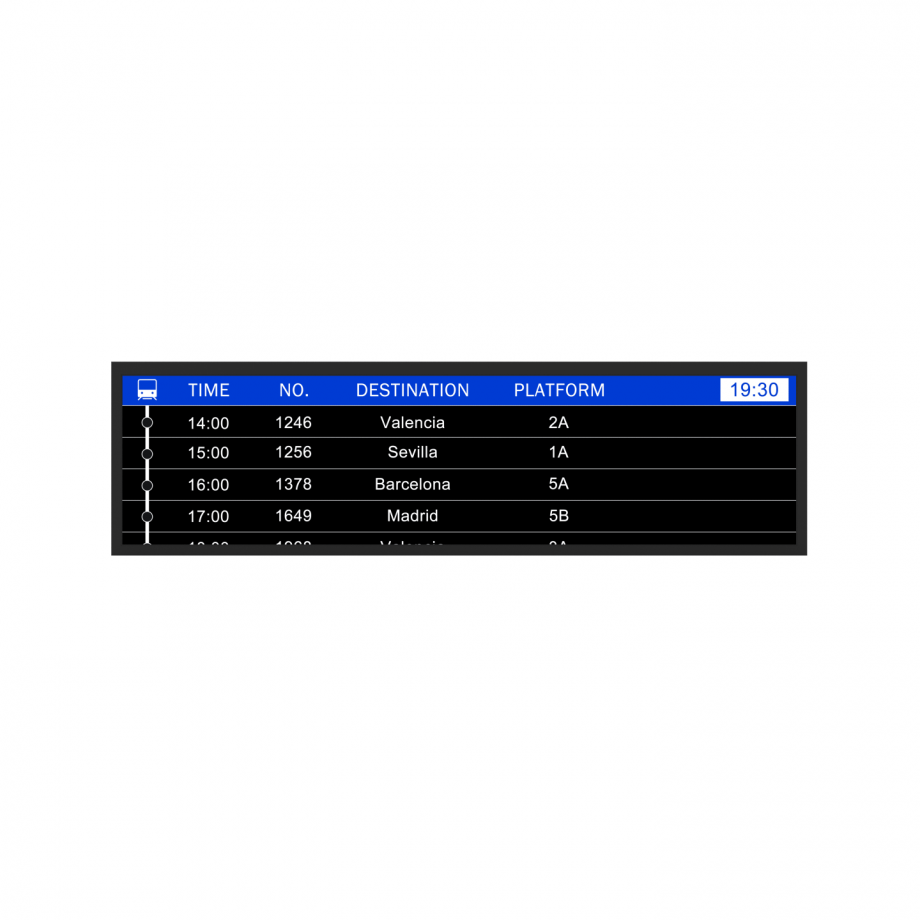

RS438ZK-ND20 43.8 inch Ultra Wide Stretched Bar LCD Panel
Factory Direct / Volume Pricing
Custom Configurations Available (Nits, IP Rating, Board)
43.8 inch ultra-wide stretched bar LCD panel, 3840×1080 IPS, 2000 nits (Typ.), industrial -20~70°C. Bare LCM module for transit and passenger information display signage.
Screen Size
43.8"
Resolution
3840×1080
Brightness
2000 nits
Contrast Ratio
1000:1
CE Certified
RoHS Certified
FCC Certified
3-Year Warranty
Technical Specifications & Hardware Parameters
Full Specifications
| Model Name | RS438ZK-ND20 |
|---|---|
| Panel Size | 43.8" |
| Brightness | 2000 (Typ.) |
| Panel Type | a-Si TFT-LCD |
| Resolution | 3840×1080 |
| Contrast Ratio | 1000:1 (Typ.) |
| LC Family | IPS |
| Polarizer | Transmissive |
| Colors Amount | 1.07B |
| Viewing Angle | 89/89/89/89 |
| Viewing Direction | Symmetry |
| Aspect Ratio | >3:1 |
| Form Factor | Flat Rectangle |
| Orientation | Landscape type |
| Composition | LCM |
| Cut Ratio | Native bar |
| Backlight Type | WLED |
| Interface Type | V-by-One |
| Interface Pins | 51 |
| Touch Type | Without |
| Active Area | 1071.36 × 301.32 |
| Outline | 1086.4 × 324 |
| Max. Depth | 20 |
| Operating Temp. | -20~70 |
| Storage Temp. | -30~80 |
| Product Class | Graphic Display |
| Minimum Order | 2 pcs |
| Sample Offer | Paid Sample |
Interested in the RS438ZK-ND20 43.8 inch Ultra Wide Stretched Bar LCD Panel?
Get pricing, lead time, and customization options. Our engineers respond within 8 hours.
