Customizable

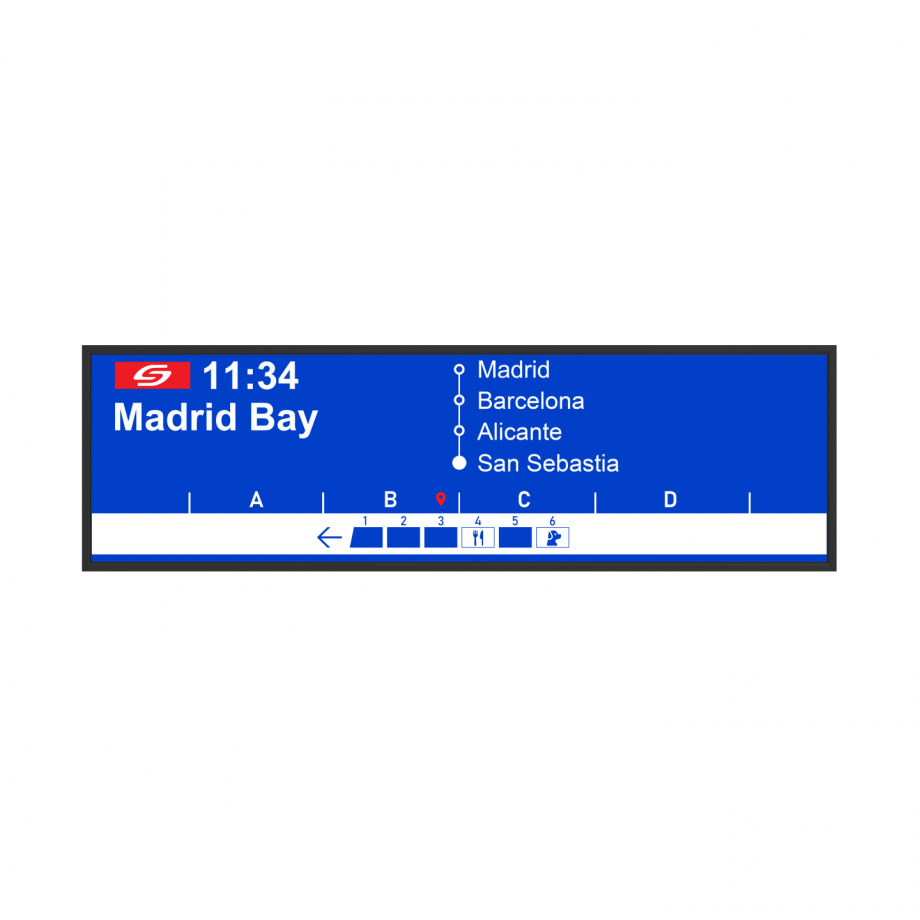

RS290EJS-NE08 28.6 inch Ultra Wide Stretched Bar LCD Panel
Factory Direct / Volume Pricing
Custom Configurations Available (Nits, IP Rating, Board)
28.6 inch ultra-wide stretched bar LCD panel, 1920×540 IPS, 800 nits (Typ.), industrial -20~70°C. Bare LCM module for transit and passenger information display signage.
Screen Size
28.6"
Resolution
1920×540
Brightness
800 nits
Contrast Ratio
1000:1
CE Certified
RoHS Certified
FCC Certified
3-Year Warranty
Technical Specifications & Hardware Parameters
Full Specifications
| Model Name | RS290EJS-NE08 |
|---|---|
| Panel Size | 28.6" |
| Brightness | 800 (Typ.) |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1920×540 |
| Contrast Ratio | 1000:1 (Typ.) |
| LC Family | IPS |
| Polarizer | Transmissive |
| Colors Amount | 16.7M |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Viewing Direction | Symmetry |
| Aspect Ratio | >3:1 |
| Form Factor | Flat Rectangle |
| Orientation | Landscape type |
| Composition | LCM |
| Backlight Type | WLED |
| Interface Type | LVDS |
| Interface Pins | 0 |
| Touch Type | Without |
| Active Area | 698.4 × 196.425 |
| Outline | 712.8 × 213.44 |
| Max. Depth | 29.6 |
| Operating Temp. | -20~70 |
| Storage Temp. | -30~80 |
| Product Class | Graphic Display |
| Minimum Order | 2 pcs |
| Sample Offer | Paid Sample |
Interested in the RS290EJS-NE08 28.6 inch Ultra Wide Stretched Bar LCD Panel?
Get pricing, lead time, and customization options. Our engineers respond within 8 hours.
