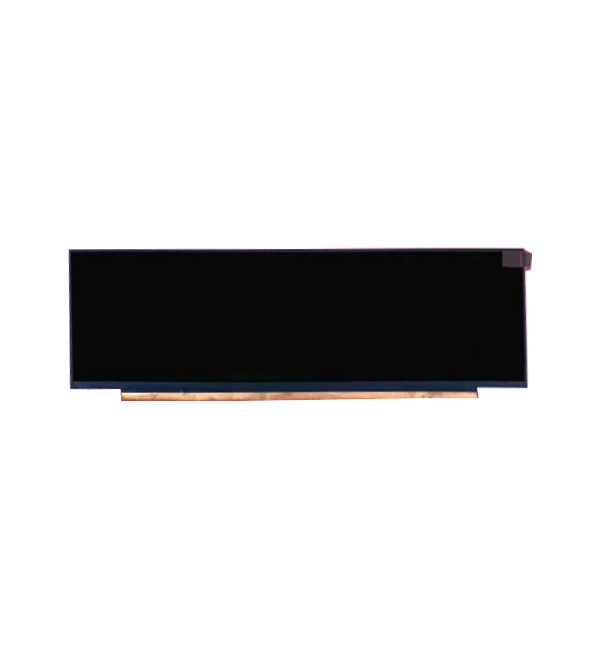

RS141XTM-NE10 14.1 inch Ultra Wide Stretched Bar LCD Panel
Factory Direct / Volume Pricing
Custom Configurations Available (Nits, IP Rating, Board)
14.1 inch ultra-wide stretched bar LCD panel, 3840×1100 IPS, 1000 nits (Typ.), industrial -20~70°C. Bare LCM module for transit and passenger information display signage.
Screen Size
14.1"
Resolution
3840×1100
Brightness
1000 nits
Contrast Ratio
1200:1
CE Certified
RoHS Certified
FCC Certified
3-Year Warranty
Technical Specifications & Hardware Parameters
Full Specifications
| Model Name | RS141XTM-NE10 |
|---|---|
| Panel Size | 14.1" |
| Brightness | 1000 (Typ.) |
| Panel Type | a-Si TFT-LCD |
| Resolution | 3840×1100 |
| Contrast Ratio | 1200:1 (Typ.) |
| LC Family | IPS |
| Polarizer | Transmissive |
| Colors Amount | 16.7M |
| Viewing Angle | 85/85/85/85 |
| Viewing Direction | Symmetry |
| Aspect Ratio | >3:1 |
| Form Factor | Flat Rectangle |
| Orientation | Landscape type |
| Composition | LCM |
| Gray Depth | 6/8-bit |
| Backlight Type | WLED |
| Interface Type | LVDS |
| Interface Pins | 30 |
| Touch Type | Without |
| Active Area | 344.218 × 98.604 |
| Viewing Area | 306.4 × 192.6 |
| Outline | 350.52 × 118.65 |
| Max. Depth | 2.5 |
| Net Weight | 1.13Kgs |
| Operating Temp. | -20~70 |
| Storage Temp. | -30~80 |
| Product Class | Graphic Display |
| Minimum Order | 2 pcs |
| Sample Offer | Paid Sample |
